Roller Conveyer Shot Blasting Machine Is Mainly Used To Clean Sheet Metal And Profile
Product description
Roller conveyor shot blasting machines are mainly used for cleaning sheet metal and profiles in a continuous feeding process. During the cleaning process, the roller table pass-through shot blasting machine is controlled by electrical appliances. The speed-adjustable conveying roller table sends the steel structure or steel into the projectile area of the cleaning machine room, and its whole body is hit by strong and dense projectiles from different coordinate directions. With friction, the oxide skin, rust layer and dirt on it will fall off quickly, and the surface of the steel will get a smooth surface with a certain roughness.
Technical data
| Model | KJ 600G | KJ1000G | KJ1500G | KJ2000G | KJQ2500G | KJQ3000G |
| Inlet width (mm) | 700 | 1100 | 1600 | 2200 | 2600 | 3300 |
| Inlet height (mm) | 550 | 550 | 550 | 550 | 550 | 550 |
| Processing speed(M/min) | 1.0-2.3 | 1.4-2.4 | 1.0-2.3 | 0.8-2.5 | 1.0-3.0 | 0.8-2.5 |
| No. of blast wheel | 4 | 4 | 4 | 4/6 | 6/8 | 6/8 |
| Single blast wheel power (kW) | 5.5/7.5 | 11 | 11/15 | 11/15 | 11/15/18.5 | 11/15/18.5 |
| Roller spacing (mm) | 800 | 650 | 650 | 800 | 800 | 800 |
| Optional roll table spacing (mm) | 400 | 400 | 400 | 400 | 400 | 400 |
Advatange
1. A variety of roller conveyor shot blasting machines are available for different applications and processing speeds
2. For processing steel structures or sheet metal or profiles in the steel preparation industry.
3.Can be used as a stand-alone unit or embedded in automatic transfer or sawing/drilling lines
Application
Clean up
Removal corrosion
Paint peeling
Rust and scale removal
Scope of application
Large quantities of steel plates, strip steel, weighing instruments, trailer pallet axles, frames, radiators, stone materials,
profiles, profiles, drilling tools, H-beams, steel structures, profiles, aluminum, steel pipes, angle steel, channel steel, round steel
, bar, steel plate, aluminum plate, coil plate, strip steel, iron tower, rebar, etc.
Product Tags:
|
|

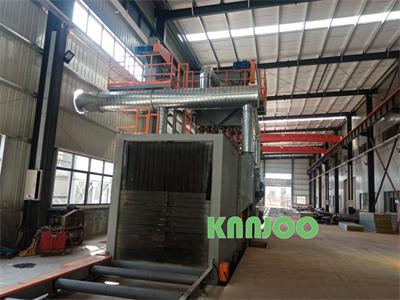

Roller Conveyer Shot Blasting Machine For Clean Sheet Metal And Profile Images
|
